How ​​does the Crane Gear-Motor function in a crane? How does it work in conjunction with other mechanical components?

The Crane Gear-Motor is one of the core components in a crane's drive system. It converts electrical energy into mechanical energy, providing power to the crane.  The Crane Gear-Motor plays a crucial role in various crane mechanisms, especially in lifting, traversing, and rotating operations. Its working principle and interaction with other mechanical components directly affect the crane's operating efficiency, precision, and safety.

Working Principle of the Crane Gear-Motor:

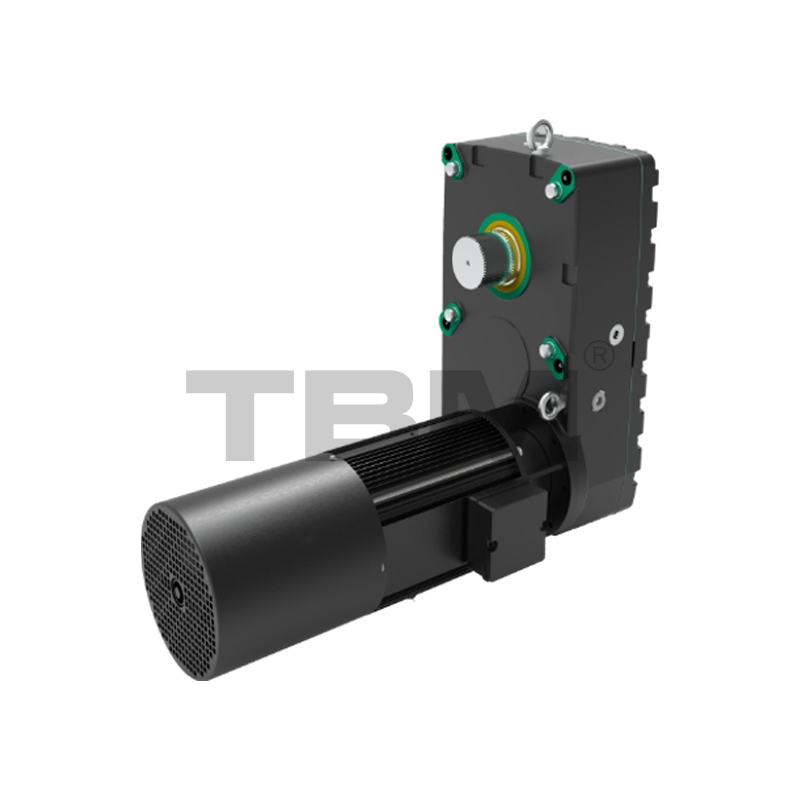

The Crane Gear-Motor consists of two parts: an electric motor and a gear transmission system. The electric motor provides the driving force, while the gear transmission system converts the motor's rotational speed into the torque and speed suitable for crane operation. The motor's rotational speed is usually high, while the torque required for lifting or traversing the crane's load is large. The gear transmission system adjusts the relationship between speed and torque through a reducer or speed increaser.

• Electric Motor: The electric motor is the power source of the Crane Gear-Motor. The selection of the motor depends on the crane's operating characteristics (e.g., whether high-load operation or high-frequency operation is required), determining its power, speed, and current type. The motor generates mechanical power through rotation, converting electrical energy into mechanical energy.
• Gear Transmission System: The gear transmission system mainly includes a gearbox, gears, and shafts. The gear system uses a combination of gears of different sizes to reduce the motor's rotational speed and convert it into the torque suitable for the crane's load. The gearbox usually consists of multiple gears to achieve different transmission ratios, thereby adjusting the output torque and speed.

Cooperation of the Crane Gear-Motor with Other Mechanical Components:

In different working mechanisms of the crane, the Crane Gear-Motor collaborates with several other mechanical components to ensure precise transmission and control of the load.

• Lifting Mechanism: During the lifting process, the Crane Gear-Motor drives the drum and wire rope system to lift the load. The motor's torque is adjusted by the gear transmission system to ensure that the wire rope smoothly winds around the drum and lifts the load. During this process, precise control of the crane gear motor is crucial to avoid rapid lifting or lowering of the load or unstable movement.
• Traveling Mechanism: In equipment such as bridge cranes and gantry cranes, the crane gear motor also drives the crane's movement. The crane's wheel system is powered by the crane gear motor, allowing it to move smoothly along the tracks. During travel, the speed control of the crane gear motor is critical; it needs to be precisely adjusted according to the track length, work requirements, and travel speed to ensure efficient and safe movement.
• Rotating Mechanism: For cranes that require rotation (such as tower cranes), the crane gear motor provides the rotational power. The motor drives the gear transmission system, allowing the upper structure of the crane to rotate precisely in the horizontal plane. The operation of the rotating mechanism usually requires high torque output to ensure that the load can be accurately transferred to the desired position.
• Braking System: The crane gear motor also works closely with the crane's braking system to ensure that the load can be precisely stopped at the target position during lifting or traveling. The motor's braking system is often linked to the gear transmission system; when the motor stops working, the braking device is immediately activated to prevent the load from sliding due to inertia.

Therefore, the crane gear motor plays an indispensable role in cranes. It not only provides power to the crane but also collaborates closely with other systems to ensure the crane operates smoothly and safely in various working conditions.

How ​​to Maintain the Lubrication System of a Crane Gear-Motor to Ensure Long-Term Operation of Gears and Motors?

The lubrication system of a crane gear-motor plays a crucial role in ensuring the long-term stable operation of the gears and motor. Lubrication not only reduces friction and wear between components but also prevents overheating, corrosion, and other failures caused by a lack of lubrication. Therefore, proper maintenance of the lubrication system is key to ensuring the efficient operation and extended service life of the crane gear-motor.

Lubricant Selection and Replacement:

• Selecting the Right Lubricant: The choice of lubricant depends on the working environment's temperature, humidity, load, and the crane's operating intensity. For high-load, high-speed crane gear-motors, lubricants with higher viscosity and stronger anti-wear properties are usually selected. For example, synthetic oils generally have better high-temperature stability and oxidation resistance, making them suitable for high-load, high-temperature environments.
• Regular Lubricant Replacement: Lubricants lose some of their lubricating properties or become contaminated with impurities after prolonged use, so they must be replaced regularly. Generally, the lubricant replacement cycle is 500 to 1000 hours, but the specific cycle can be adjusted according to the frequency of use, working environment, and load conditions of the crane gear-motor. In high-temperature or high-load environments, the lubricant replacement cycle should be shortened accordingly.

Lubricant Inspection and Addition:

• Oil Level Check: Regularly check the lubricant level to ensure sufficient lubrication. Low oil levels can lead to insufficient lubrication, increasing wear on the gears and motor, and in severe cases, can even lead to motor burnout or gear system failure.
• Oil Quality Check: Lubricants gradually become contaminated, dirty, or viscous during operation. Regularly check the oil quality, observing the color and texture of the oil. If the lubricant turns black, becomes viscous, or smells bad, it may indicate that the oil has aged or is contaminated, and it needs to be replaced immediately.
• Regular Cleaning of the Lubricant Filter: The lubricant filter is used to remove impurities from the oil, preventing particles from entering the gearbox. During regular inspections, filters need to be cleaned or replaced to ensure the cleanliness of the oil and guarantee the efficient operation of the lubrication system.

Gear Lubrication and Maintenance:

The gears are one of the most heavily worn parts in the Crane Gear-Motor, therefore requiring special attention. To ensure adequate lubrication of the gears:

• Regularly inspect gear wear: Gears may experience surface wear and cracks during long-term operation. Regularly inspect the gear surface to ensure there is no excessive wear or defects. If significant wear is found, the gears should be replaced promptly.
• Check sealing: The sealing of the gearbox directly affects the storage and use of lubricating oil. If the seal is poor, the lubricating oil will leak, leading to reduced lubrication effectiveness and increased gear wear. Therefore, regular inspection and replacement of seals are also very necessary.

How ​​to ensure the safety of Crane Gear-Motors under high load conditions and prevent failures due to overload, overheating, etc.?

The working environment of Crane Gear-Motors in crane systems is typically characterized by high loads, high frequency of operation, and variable conditions. Zhejiang Shuangniao Lifting Equipment Co., Ltd. is committed to the research and development and production of high-performance electric hoists (such as the SHA8, SHA7, and SHH series), with over 8,000 units produced and sold annually. These products have earned high market praise, especially for their outstanding performance in terms of "safety and durability." To ensure the safety of Crane Gear-Motors under high load conditions, Zhejiang Shuangniao Lifting Equipment Co., Ltd. employs advanced design and manufacturing technologies, combined with precise maintenance strategies, to ensure the efficient and safe operation of the motor in complex working environments.

Overload Protection and Intelligent Control

For crane gear-motors, overload protection is one of the important measures to ensure motor safety. Zhejiang Shuangniao Lifting Equipment Co., Ltd. places great emphasis on the overload protection function of its motors, especially under high-load operating conditions of lifting equipment. The overload protection device can monitor the motor's load in real time, and once the load exceeds a set threshold, the system will automatically take protective measures to prevent failures caused by overload.

• Intelligent Overload Protection System: Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s cranes are equipped with an advanced intelligent control system that can accurately identify and respond to load changes through real-time monitoring of the motor and load. When the load exceeds the set safety range, the control system will immediately issue an alarm or automatically reduce the motor output power to prevent damage to the motor due to overload. The intelligent control system can also adjust the starting and stopping frequency of the motor, ensuring smooth operation of the equipment and reducing the risk of overload caused by frequent starts and stops.
• Thermal Protection and Current Overload Devices: Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s electric hoist series products (such as the SHA7 and SHA8 series) are equipped with thermal protection and current overload protection devices. The thermal protection device monitors the motor temperature, and if the temperature exceeds the safe range, the system will automatically cut off the power supply to prevent the motor from overheating and being damaged. The current overload protection device monitors the motor's operating current to prevent prolonged operation under excessive load, ensuring the motor's safety.

Overheating Prevention Design and High-Efficiency Cooling System

Cranes operating under heavy loads often experience motor overheating problems, especially in environments with frequent starts and stops and high-load operations, where the motor temperature easily rises. To address this problem, Zhejiang Shuangniao Lifting Equipment Co., Ltd. has fully considered cooling efficiency in the design of its Crane Gear-Motor and adopted a series of overheating prevention designs.

• High-Efficiency Cooling Device: Zhejiang Shuangniao Lifting Equipment Co., Ltd. pays special attention to optimizing the cooling system when designing the Crane Gear-Motor. The motor casing is usually made of high-quality aluminum alloy or steel, and cooling fins are added to improve the cooling effect. The cooling fan design uses high-efficiency and low-noise technology to ensure that the motor maintains good cooling performance during high-load operation. For some cranes operating under high loads, Zhejiang Shuangniao Lifting Equipment Co., Ltd. will also add external cooling equipment (such as water cooling or air cooling systems) as needed to ensure that the motor will not be damaged by overheating during long-term operation.
• Temperature Control System: To further ensure the safety of the motor during high-load operation, Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s Crane Gear-Motor is equipped with a temperature control system. This system can monitor the motor temperature in real time and automatically reduce the motor load or activate a backup cooling system when the temperature approaches dangerous levels, effectively preventing overheating problems.
• High-Temperature Resistant Materials and Efficient Lubrication: In addition to the cooling system, Zhejiang Shuangniao Lifting Equipment Co., Ltd. also uses high-temperature resistant materials, such as high-temperature wear-resistant bearings and seals, to ensure that the motor can operate stably under extreme temperature conditions. Furthermore, an efficient lubrication system is also a key factor in preventing overheating. Regular inspection and replacement of lubricating oil helps reduce friction, lower operating temperature, and thus improve the safety and efficiency of the motor.

Regular Maintenance and Fault Warning System

Regular maintenance is another important measure to ensure the safety of the Crane Gear-Motor under heavy loads. Zhejiang Shuangniao Lifting Equipment Co., Ltd. understands that the long-term stability and safety of equipment depend on rigorous maintenance, therefore, in addition to providing high-performance products, the company also provides professional maintenance services to its customers.

• Fault Diagnosis and Early Warning System: Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s electric hoist series equipment is equipped with an advanced fault diagnosis and early warning system. This system can monitor the operating status of the motor in real time, including important parameters such as current, voltage, temperature, and load. Once the system detects an abnormal situation (such as overload, overheating, wear, etc.), it will send an alarm through sensors, reminding operators to check and maintain the equipment, preventing equipment failure due to undetected problems.
• Maintenance Plan and Technical Support: To ensure the long-term safe operation of the motor, Zhejiang Shuangniao Lifting Equipment Co., Ltd. provides detailed maintenance manuals and, relying on the company's strong after-sales service network, regularly provides customers with professional technical support and maintenance services. The company has more than 120 large dealers and after-sales service teams worldwide, able to provide assistance to customers as soon as problems arise. Regular inspections and maintenance ensure that all safety measures of the Crane Gear-Motor are in optimal condition in high-load working environments, thus greatly reducing the failure rate.

Balancing Safety and Efficiency

In Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s product design, safety and efficiency are always complementary. The company focuses on the research and development of innovative products, using advanced technology and high-quality materials to ensure that the Crane Gear-Motor can operate safely under high loads while maintaining efficient working conditions.

• High-Efficiency Design: Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s Crane Gear-Motor adopts advanced motor design and control technology, which not only meets the driving needs of high loads but also maintains high efficiency under high loads, reducing energy consumption. Through precise motor control, Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s electric hoist series products can effectively improve operational efficiency and optimize energy use through intelligent adjustment methods such as variable frequency drives, reducing operating costs.
• Long Lifespan and Safety Assurance: Through multiple safety measures such as efficient heat dissipation, overload protection, and temperature control systems, Zhejiang Shuangniao Lifting Equipment Co., Ltd.'s Crane Gear-Motor can operate stably for extended periods in extreme environments, maximizing the equipment's lifespan while ensuring safety under heavy loads and preventing downtime and accidents caused by equipment failure.
