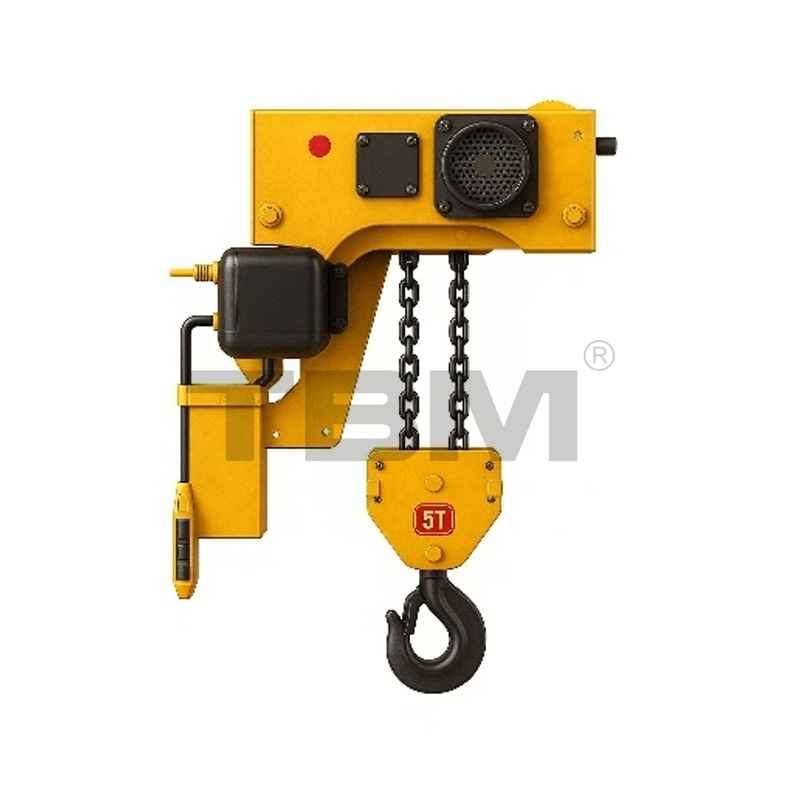

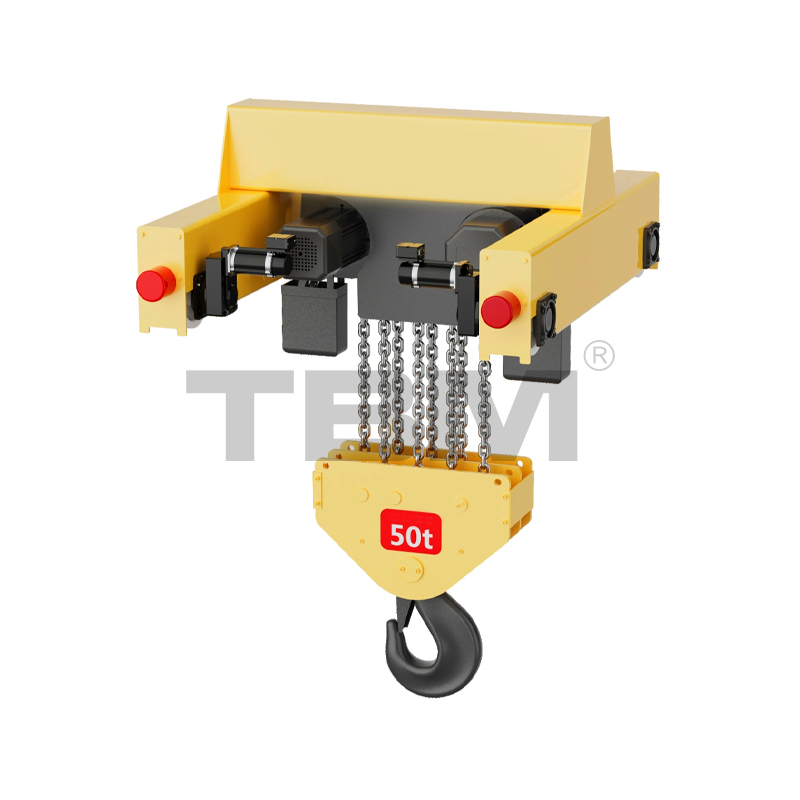

ZH Type Chain Hoist: The High-Efficiency Solution for Industrial Lifting

Core Advantages of the ZH Type Chain Hoist

In the landscape of modern industrialization, the performance of lifting equipment directly determines the operational efficiency of production lines. Zhejiang Shuangniao Lifting Equipment Co., Ltd., leveraging years of research and development in special equipment, has positioned the ZH Type Chain Hoist as a core product in the global material handling market.

The primary advantage of the ZH Type Chain Hoist lies in its compact modular design philosophy. Traditional electric hoists are often bulky, which can severely limit lifting height in low-ceiling factories. By optimizing the internal transmission structure, the ZH Type Chain Hoist integrates the motor, gearbox, and sprocket into a streamlined unit, significantly reducing the overall body size. This design saves space and reduces the equipment's self-weight, making it exceptionally easy to upgrade or replace existing systems with a ZH Type Chain Hoist.

Durability is another hallmark of the ZH Type Chain Hoist. Zhejiang Shuangniao Lifting Equipment Co., Ltd. utilizes high-strength aluminum alloy die-cast casings during production. This material offers superior heat dissipation, ensuring the motor does not trigger overheat protection during long periods of high-load operation. The multi-layer electrostatic powder coating allows the ZH Type Chain Hoist to handle harsh environments, including chemical processing and maritime operations, where corrosion risks are prevalent.

Technical Specifications of the ZH Type Chain Hoist

To ensure precise matching for every engineering requirement, Zhejiang Shuangniao Lifting Equipment Co., Ltd. has established strict parameter standards for the ZH Type Chain Hoist series. These designs cater to everything from light assembly to heavy-duty industrial manufacturing.

Core technical parameters for various ZH Type Chain Hoist models are detailed below:

Zhejiang Shuangniao Lifting Equipment Co., Ltd. also offers frequency conversion customization. By selecting a VFD (Variable Frequency Drive), the lifting speed of the ZH Type Chain Hoist can be adjusted steplessly from zero to rated speed, which is vital for the micro-positioning of precision molds.

Internal Structure Analysis of the ZH Type Chain Hoist

The high performance of the ZH Type Chain Hoist stems from the meticulous integration of its internal components, reflecting the commitment of Zhejiang Shuangniao Lifting Equipment Co., Ltd. to technological innovation.

Transmission System

The ZH Type Chain Hoist utilizes a three-stage parallel-shaft helical gear reduction structure. The gears are made of high-strength alloy steel, vacuum carburized, quenched, and precision ground. This process ensures smooth gear engagement, improving transmission efficiency while keeping the noise of the ZH Type Chain Hoist at industry-leading low levels.

Braking System

Safety is the lifeline of lifting. The ZH Type Chain Hoist is equipped with a dual braking system. The first is a DC electromagnetic brake that responds in microseconds; the second is a mechanical brake integrated within the motor as a redundant backup. Even in the event of a sudden power failure, the ZH Type Chain Hoist securely locks the load in place.

Chain Sprocket and Guide

To prevent chain jumping or twisting during high-speed operation, Zhejiang Shuangniao Lifting Equipment Co., Ltd. designed precision-machined five-pocket sprockets specifically for the ZH Type Chain Hoist. Combined with a self-lubricating chain guide, the movement is extremely smooth, reducing friction between the chain and sprocket.

Enhancing Operational Efficiency with the ZH Type Chain Hoist

In a fast-paced production environment, the value of the ZH Type Chain Hoist lies in its ability to shorten auxiliary task times. Zhejiang Shuangniao Lifting Equipment Co., Ltd. adopted a human-centric design approach from the start.

The ZH Type Chain Hoist offers excellent tactile feedback. The control pendant features an ergonomic design, allowing for precise operation even when wearing heavy industrial gloves. Clear button feedback prevents accidental movements. Maintenance is also simplified; the gearbox uses long-life lubricant that rarely needs replacement under normal conditions. All electrical components in the ZH Type Chain Hoist utilize modular connectors, so replacing a contactor or controller is a simple plug-and-play process, minimizing production downtime.

Furthermore, the ZH Type Chain Hoist is highly adaptable. It can be suspended on standard I-beams or integrated into crane systems (such as KBK systems). This flexibility ensures that when a factory layout changes, the ZH Type Chain Hoist can be redeployed with minimal adjustments.

Industry Applications of the ZH Type Chain Hoist

Market data from Zhejiang Shuangniao Lifting Equipment Co., Ltd. indicates that the ZH Type Chain Hoist is active across various global industrial sectors:

Automotive Manufacturing

Used in engine assembly and chassis lifting. The smooth low-speed start of the ZH Type Chain Hoist prevents collisions between workpieces and assembly lines.

Food and Pharmaceutical Industry

For hygiene-sensitive environments, Zhejiang Shuangniao Lifting Equipment Co., Ltd. provides specialized ZH Type Chain Hoist configurations featuring stainless steel chains and food-grade lubricants.

Wind Energy Maintenance

Inside the cramped nacelles of wind turbines, the ZH Type Chain Hoist is the preferred tool for lifting spare parts and toolkits due to its compact frame and high vertical lift capabilities.

Logistics and Warehousing

In high-volume sorting centers, the ZH Type Chain Hoist handles heavy goods frequently. Its high duty cycle (supporting over 300 starts per hour) meets the intensity of modern logistics.

Safe Operation Procedures for the ZH Type Chain Hoist

Zhejiang Shuangniao Lifting Equipment Co., Ltd. emphasizes safety education. Operators must adhere to the following when using the ZH Type Chain Hoist:

Pre-operational Test

Before daily work, perform a no-load lift and lower test to check for abnormal motor sounds and to ensure the limit switches of the ZH Type Chain Hoist function correctly.

Load Management

While the ZH Type Chain Hoist is designed with a safety factor, chronic overloading accelerates gear and chain fatigue. Always verify the actual weight of the load. The hook must be positioned directly above the center of gravity. Never use the ZH Type Chain Hoist for side-pulling, as this creates horizontal forces that can deform the track or cause the chain to jump.

Maintenance and Care for the ZH Type Chain Hoist

Regular maintenance is key to extending the life of your equipment. Zhejiang Shuangniao Lifting Equipment Co., Ltd. recommends the following schedule for the ZH Type Chain Hoist:

Chain Management

The chain is a critical wear part. Every quarter, clean the chain with a specialized solvent and reapply extreme-pressure lubricant. If the chain shows cracks or significant nicks, it must be replaced with an original part provided by Zhejiang Shuangniao Lifting Equipment Co., Ltd.

Brake and Electrical Inspection

As brake pads wear, the gap increases. Maintenance personnel should regularly measure the electromagnetic brake gap of the ZH Type Chain Hoist. If it exceeds the specified value, adjustment or replacement is required. Regularly inspect contactor points for arc erosion and use compressed air to clean the control box to prevent short circuits.

Factors to Consider When Purchasing a ZH Type Chain Hoist

When consulting with the expert team at Zhejiang Shuangniao Lifting Equipment Co., Ltd., consider these dimensions:

Site Requirements

Consider both current needs and future headroom. The chain length of the ZH Type Chain Hoist is customizable but must be paired with an appropriately sized chain bag. Voltage fluctuations can damage motors; if your power supply is unstable, consider adding a wide-voltage protection module.

Speed and Certification

For efficiency-sensitive processes, the dual-speed version of the ZH Type Chain Hoist (fast for travel, slow for positioning) is the optimal choice. Ensure the device carries the CE mark and the original anti-counterfeit label from Zhejiang Shuangniao Lifting Equipment Co., Ltd.

FAQ

Can the ZH Type Chain Hoist be used in explosion-proof environments?

Yes. Zhejiang Shuangniao Lifting Equipment Co., Ltd. produces specialized explosion-proof versions of the ZH Type Chain Hoist. These models use bronze or stainless steel components to prevent friction sparks and are equipped with flameproof motors.

How long should I wait if the thermal protection of the ZH Type Chain Hoist trips?

This depends on the ambient temperature. Usually, the motor requires 15 to 30 minutes to cool down. To avoid frequent trips, ensure your work cycle does not exceed the rated duty cycle (ED%) of the ZH Type Chain Hoist.

What materials are available for the chain container?

The ZH Type Chain Hoist comes standard with a high-strength canvas bag. For high-temperature environments or areas with welding slag, we offer steel or hard plastic containers.

Does the ZH Type Chain Hoist meet international safety standards?

Yes, the ZH Type Chain Hoist fully complies with CE certification and relevant ISO safety standards for lifting machinery, with quality control overseen by Zhejiang Shuangniao Lifting Equipment Co., Ltd.
