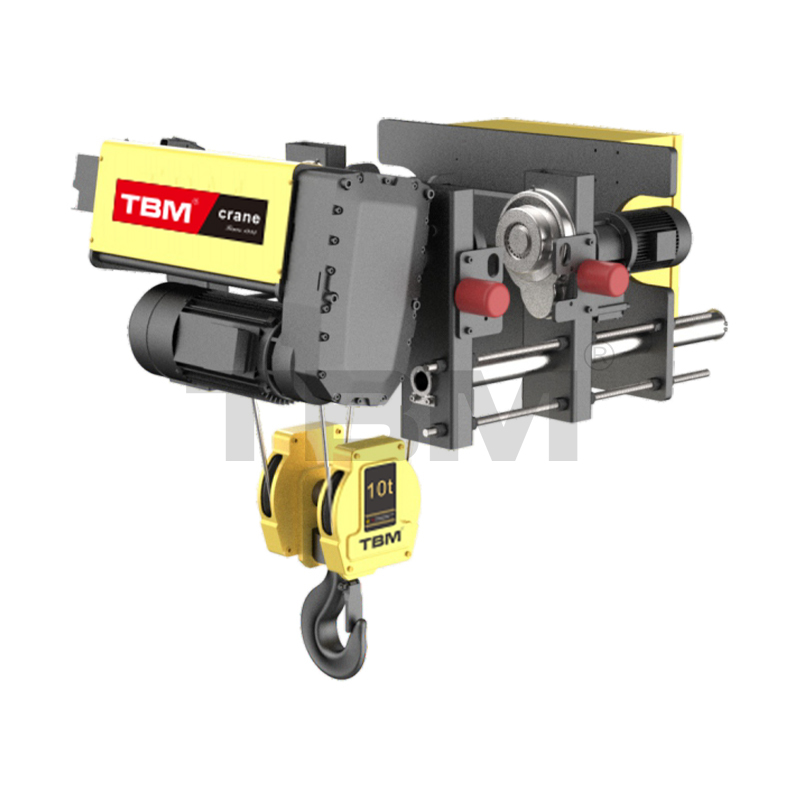

SHA8 Low-headroom Electric Wire Rope Hoist

Electric Wire Rope Hoist

The core design concept of SHA8 Low-headroom Electric Wire Rope Hoist is to minimize the space occupied by the equipment while ensuring the lifting capacity by optimizing the height of the hook and the structural configuration of the crane. Its low headroom design enables the equipment to work in spaces where some traditional cranes cannot operate, which is particularly suitable for workshops with limited height or other space restrictions. The SHA8 series hoisting mechanism uses high-strength steel wire rope, with high-efficiency electric motors and precision reducer systems to provide stable and lasting lifting performance. The crane is equipped with advanced high-efficiency motors and adopts variable frequency speed regulation technology to achieve precise lifting control. The motor design meets international standards and has multiple safety functions such as overload protection, short circuit protection, and over-temperature protection to ensure the safe operation of the equipment under long-term work. Compared with traditional cranes, this SHA8 crane can operate in a lower space, which is particularly suitable for workshops and factories with limited height. This design makes the maximum lifting height of the hook relatively large and improves the flexibility of the equipment.

PREV：SHA8 Double Girder Electric Wire Rope Hoist(Double reel)-BZ TypeNEXT：No next article
  • Specification
  • About TBM
  • Contact Us
Technical Parameters

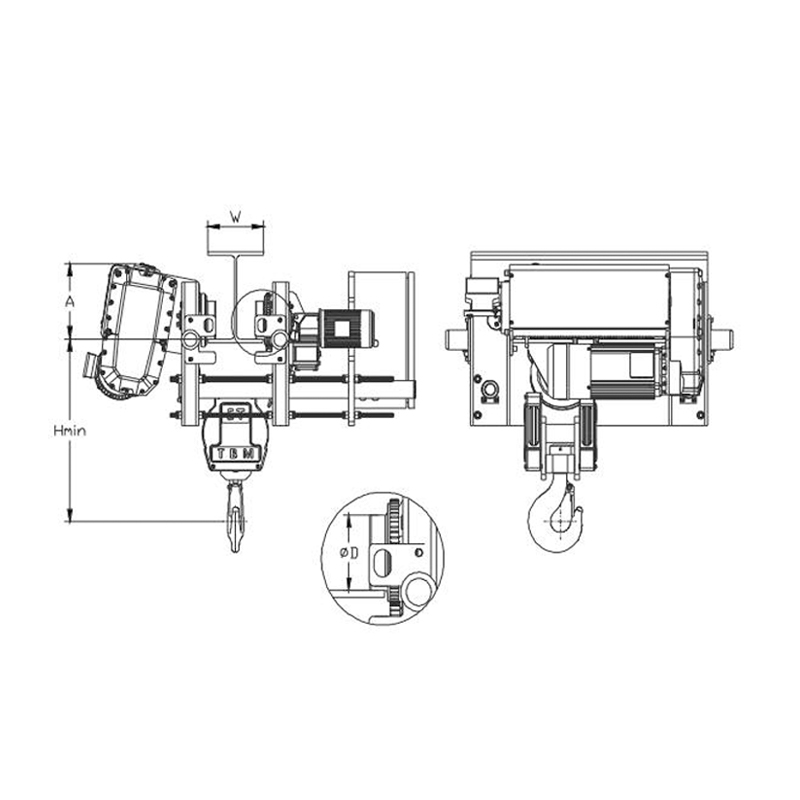

Model  Capacity（t） Duty Rope Reaving Lifting Speed (m/min) Lifting Motor (kW) Travelling Speed (m/min) Travelling Motor (kW) Rail width range W(mm) Wire Rope Diameter (mm)

Wheel
Diameter
D

(mm)

 A
(mm)		 Hmin
（mm）		 Lifting Height
(m)
I Beam H Beam
SHA8-2D 1 M7 2/1 10/1.6 3.2/0.45 20/5 2x
0.37/0.1		 100-180 100-400 7 100 220 600 12/18/24/30
1.25 M6 2/1 10/1.6
1.6 M5 2/1 10/1.6
2 M7 4/1 5/0.8 510 6/9/12/15
2.5 M6 4/1 5/0.8
3.2 M5 4/1 5/0.8
SHA8-3D 2 M6 2/1 10/1.6 6.0/0.9 20/5 2x
0.37/0.1		 110-180 110-460 9 125 249 700 12/18/24/30
2.5 M5 2/1 10/1.6
3.2 M4 2/1 10/1.6
4 M6 4/1 5/0.8 600 6/9/12/15
5 M5 4/1 5/0.8
6.3 M4 4/1 5/0.8
SHA8-4D 4 M6 2/1 10/1.6 9.5/1.5 20/5 2x
0.37/0.1		 120-180 120-460 13 150 336 900 12/18/24/30
5 M5 2/1 10/1.6
6.3 M4 2/1 10/1.6 12.5/1.9
8 M6 4/1 5/0.8 9.5/1.5 2x
0.75/0.18		 800 6/9/12/15
10 M5 4/1 5/0.8
12.5 M4 4/1 5/0.8 12.5/1.9
Note: The lifting and running motors can be equipped with frequency conversion motors.
