SHA7 Double Girder Electric Wire Rope Hoist

Home / Products / Electric Wire Rope Hoist / SHA7 Electric Wire Rope Hoist / SHA7 Double Girder Electric Wire Rope Hoist

SHA7 Double Girder Electric Wire Rope Hoist

Electric Wire Rope Hoist

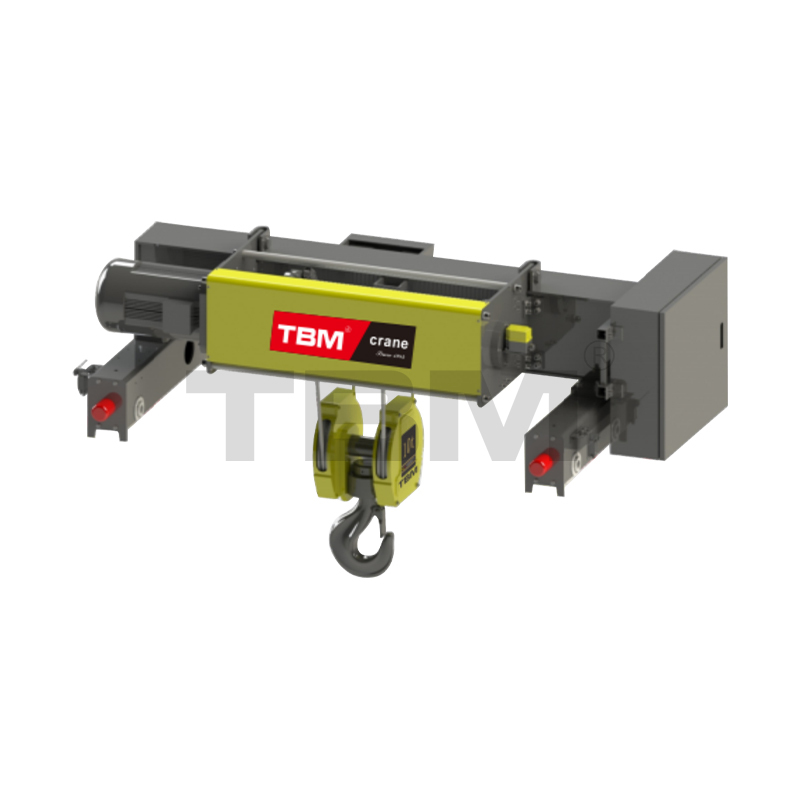

SHA7 Double Girder Electric Wire Rope Hoist is a device that drives the wire rope to lift through an electric motor. It uses a double-beam trolley with an electric hoist, which is suitable for large-tonnage and large-span material handling. The SHA7 electric hoist adopts a double-beam structure design, which provides a stronger load capacity than a single-beam structure. The two crossbeams not only ensure high-strength load-bearing, but also greatly improve the stability of the hoist. The double-beam design can effectively prevent the equipment from tilting or shaking during the lifting process. In order to adapt to different operating requirements, the SHA7 electric hoist adopts a dual-speed control system, allowing the operator to adjust the lifting speed according to actual needs. The low-speed mode is suitable for precise positioning and light-load operations, while the high-speed mode can quickly complete the lifting task under heavy-load conditions. The double-beam trolley equipped with the SHA7 electric hoist has a strong driving capacity and can quickly move materials in a long-span, high-load environment. The trolley drive adopts an electric drive system to ensure the efficient operation of the trolley and can move smoothly on the track, reducing friction and wear. The design of the trolley also focuses on the compactness of the space, which is suitable for flexible operation in a limited working space.

PREV：SHA7 Standard headroom Wire Rope Electric HoistNEXT：SHA7 Low-headroom Wire Rope Hoist
  • Specification
  • About TBM
  • Contact Us

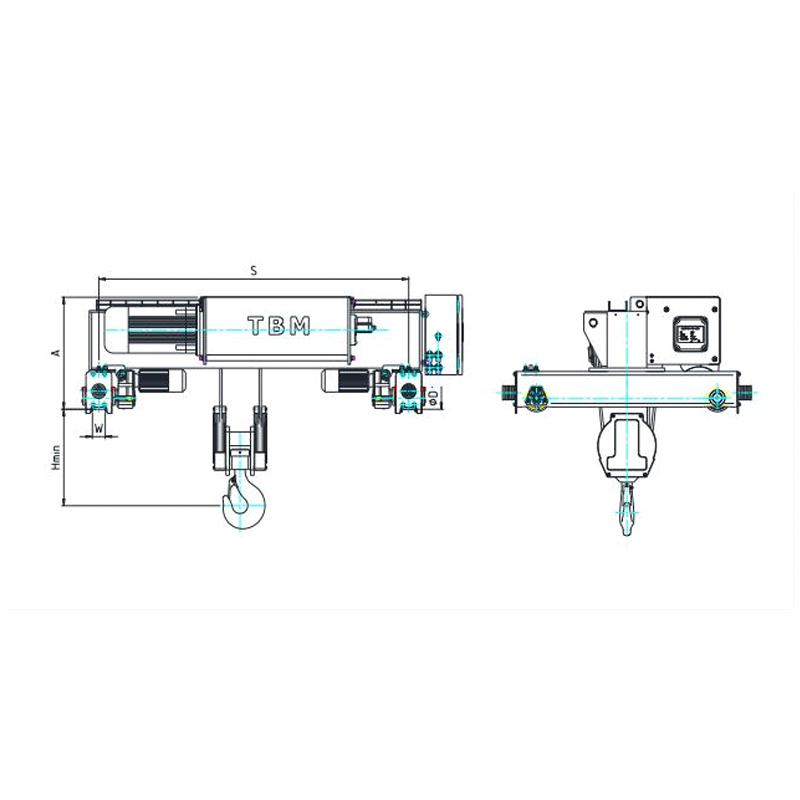

Model Rope Reaving Lifting Motor (kW) Lifting Speed (m/min) Travelling Motor (kW) Travelling Speed (m/min) Wheel Diameter (mm) Hmin (mm) A
(mm)		 W
(mm)

Rail Gauge S

(mm)

 Lifting Height (m) Capacity (T) ISO/GB Working Grade Drum Diameter (mm) Wire Rope Diameter (mm)
SHA7-5BS 2/1 4.5/1.1 8/2 2*0.37 0~20 125 450 550 65 1200~2000 12~30 3 M4 247 11
4/1 4/1 2*0.37 0~20 125 350 550 65 1200~2000 6~15 6.3 M4
SHA7-6BS 2/1 7.5/2 8/2 2*0.37 0~20 125 600 650 65 1400~2300 12~30 5 M4 275 13
4/1 4/1 2*0.55 0~20 125 500 650 65 1400~2300 6~15 10 M4
SHA7-7BS 2/1 13/3.4 7/1.8 2*0.55 0~20 125 750 780 65 1400~2600 9~36 10 M4 327 18
4/1 3.5/0.9 2*0.75 0~20 160 750 800 75 1400~2600 6~18 20 M4
8/2 3.5/0.9 2*0.75 0~20 160 900 800 75 1700~3000 9~18 20 M4 13
12/2 2.3/0.6 2*1.1 0~20 200 1200 900 85 1700~3000 6~12 30 M4
SHA7-9BS 2/1 18.5/4.6 6/1.5 2*0.75 0~20 160 1000 1000 75 1700~3000 12~45 16 M4 405 20
4/1 3/0.75 2*1.1 0~20 200 1000 1100 85 1700~3000 6~22.5 32 M4
8/2 3/0.75 2*1.1 0~20 200 900 1100 85 2000~3400 9~22.5 32 M4 15
12/2 2/0.5 2*1.5 0~20 250 1500 1200 90 2000~3400 6~15 48 M4
SHA7-10BS 2/1 22/5.5 6/1.5 2*0.75 0~20 160 1000 1000 75 1700~3000 12~45 20 M4 405 20
4/1 3/0.75 2*1.5 0~20 250 1000 1100 90 1700~3000 6~22.5 40 M4
8/2 3/0.75 2*1.5 0~20 250 900 1100 90 2000~3400 9~22.5 40 M4 15
12/2 2/0.5 2*2.2 0~20 315 1500 1200 95 2000~3400 6~15 60 M4
16/2 1.5/0.38 2*3 0~20 400 2500 1200 105 2000~3400 4.5~11 80 M4
8/2D 2*22/5.5 3/0.75 2*3 0~20 400 1200 1400 105 2000~3400 6~22.5 80 M4 20
10/2D 2.4/0.6 2*4 0~20 400 2000 1400 105 2000~3400 7~18 100 M4
NOTE: D is for Double Drum structure, Lifting and Travelling motor can be equipped with single speed or inverter motor.The power value is the fast power value
