SHA7 Standard headroom Wire Rope Electric Hoist

Home / Products / Electric Wire Rope Hoist / SHA7 Electric Wire Rope Hoist / SHA7 Standard headroom Wire Rope Electric Hoist

SHA7 Standard headroom Wire Rope Electric Hoist

Electric Wire Rope Hoist

SHA7 Standard headroom Wire Rope Electric Hoist uses high-strength steel wire rope as the main lifting tool, which has good wear resistance and tensile resistance. Steel wire rope has a stronger load capacity than chain and can adapt to high-frequency and long-term lifting operations. It is especially suitable for use in harsh environments such as high temperature and humidity. The product is equipped with a high-efficiency electric motor with reasonable power and current design, which can stably provide continuous power to ensure the smooth lifting operation. The motor adopts dustproof and waterproof design, meets international standards, and can operate stably in a variety of working environments. It uses advanced frequency conversion technology to make lifting, lowering and walking movements smoother, avoiding the severe impact and vibration of traditional cranes during operation. This electric hoist is mainly used for material handling, equipment installation, loading and unloading of parts on production lines, and is widely used in machinery manufacturing, automobile assembly, electrical equipment and other industries.

PREV：No previous articleNEXT：SHA7 Double Girder Electric Wire Rope Hoist
  • Specification
  • About TBM
  • Contact Us

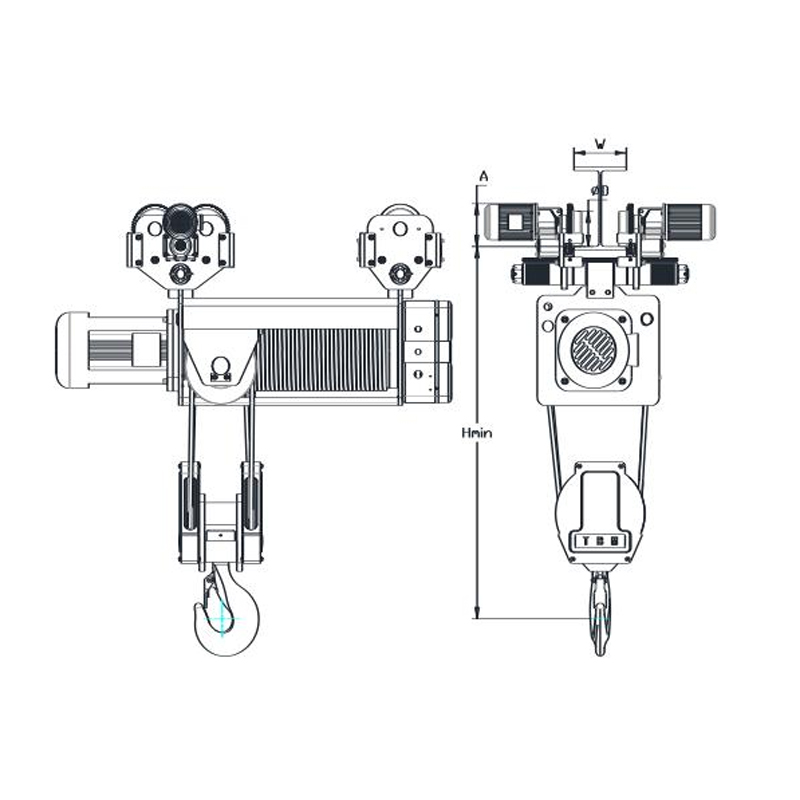

Technical Parameters
Model Capacity (t) Working Grade Rope Reaving Lifting Speed (m/min) Lifting Motor (kw) Travelling Speed (m/min)

Travelling Motor

(kw)

 Rail Width Range W (mm) Wire Rope Diameter (mm) Wheel Diameter D
(mm)		 A
 (mm)		 Hmin (mm) Lifting Height (m)
I Beam H Beam
SHA7-4B 1.6 M4 2/1 9/2.2 3/0.8 20/5 0.37/0.1 100-180 100-420 8 100 157 1050 9/12/18/24/30
3 M4 4/1 4.5/1.1 3/0.8 20/5 0.37/0.1 100-180 100-420 8 100 157 1000 6/9/12/15
SHA7-5B 3 M4 2/1 8/2 4.5/1.1 20/5 0.37/0.1 100-180 100-420 11 100 157 1200 9/12/18/24/30
6.3 M4 4/1 4/1 4.5/1.1 20/5 0.75/0.18 110-180 110-420 11 100 157 1100 6/9/12/15
SHA7-6B 5 M4 2/1 8/2 7.5/2 20/5 0.75/0.18 110-180 110-420 13 100 157 1300 9/12/18/24/30
10 M4 4/1 4/1 7.5/2 20/5 0.75/0.18x2 120-180 120-460 13 125 160 1300 6/9/12/15
SHA7-7B 10 M4 2/1 7/1.8 13/3.4 20/5 0.75/0.18x2 120-180 120-460 18 125 160 1450 9/12/18/24/30
20 M4 4/1 3.5/0.9 13/3.4 20/5 0.75/0.18x2 130-180 130-300 18 150 180 1400 6/9/12/15
Note: Both hoisting and running motors can be equipped with single speed or variable speed motors.
