SHA7 Low-headroom Wire Rope Hoist

Home / Products / Electric Wire Rope Hoist / SHA7 Electric Wire Rope Hoist / SHA7 Low-headroom Wire Rope Hoist

SHA7 Low-headroom Wire Rope Hoist

Electric Wire Rope Hoist

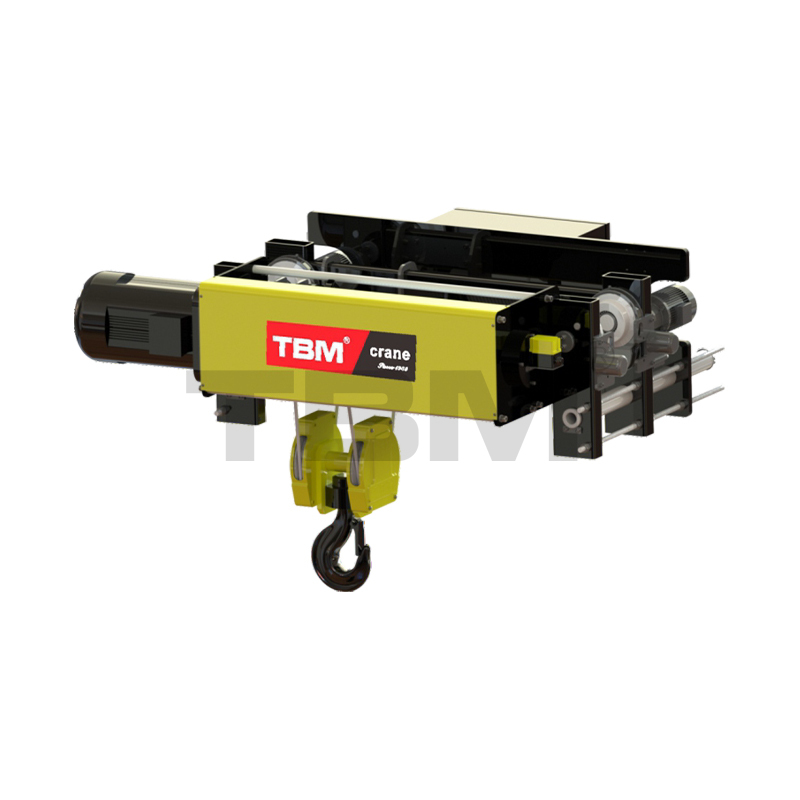

The SHA7 Low-headroom Wire Rope Hoist is a lifting device designed for low-headroom environments. It combines high-strength materials with precision technology. Its low-headroom design allows it to operate in a lower space than ordinary hoists, reducing the vertical height requirements when installing the equipment, thereby maximizing the use of limited space. The lifting mechanism of the SHA7 hoist is composed of a high-precision motor, reducer and brake system, which ensures smoothness and accuracy during the lifting process. Through the efficient motor drive, the lifting equipment can achieve more precise control during the lifting and lowering of the load. The motor adopts a high-efficiency design, which can continuously output strong power even under heavy loads; the reducer reduces mechanical friction through precision design to ensure smooth operation of the equipment; and the brake system can quickly and accurately lock the lifting components when stopping to prevent accidental sliding of the equipment. In the production workshop, especially in a highly restricted environment, the SHA7 low-headroom wire rope hoist can be used for heavy object handling, lifting and assembly operations. Through its precise control system and efficient lifting mechanism, it can optimize the workshop space while ensuring the safety of the operation.

PREV：SHA7 Double Girder Electric Wire Rope HoistNEXT：No next article
  • Specification
  • About TBM
  • Contact Us
Technical Parameters

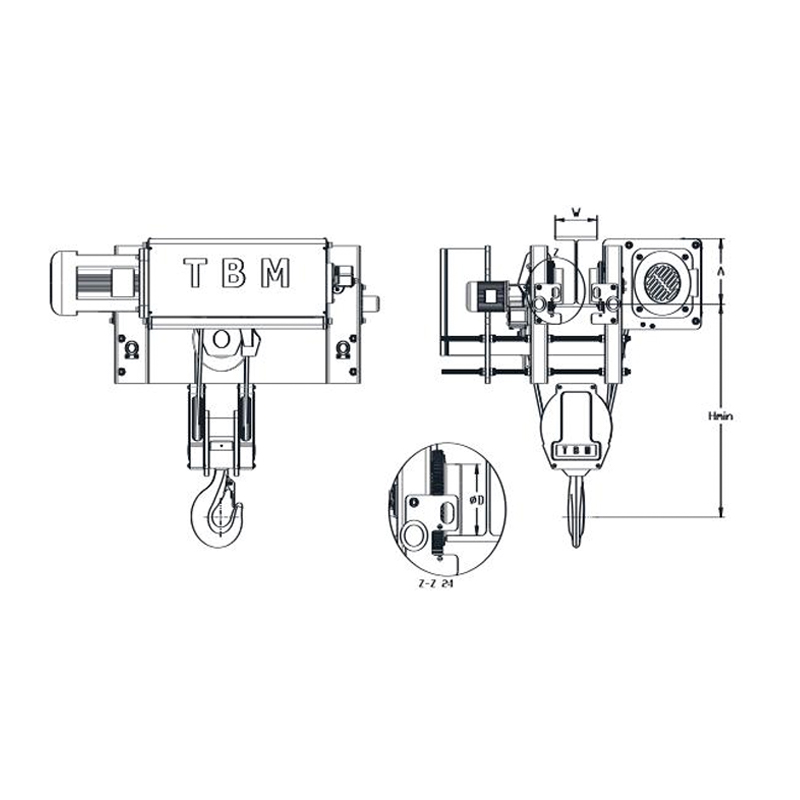

Model Capacity (L) Working Grade Rope Reeving Lifting Speed (m/min) Lifting Motor (kw) Travelling Speed (m/min) Travelling Motor (kw) Rail Width Range W
(mm)		 Wire Rope Diameter (mm) Wheel Diameter D (mm) A
 (mm)		 Hmin (mm) Lifting Height (m)
I Beam H Beam
SHA7-4D 1.6 M4 2/1 9/2.2 3/0.8 20/5 0.37/0.1 ×2 100-180 100-400 8 100 220 600 12/18/24/30
3.2 M4 4/1 4.5/1.1 3/0.8 20/5 0.37/0.1 ×2 100-180 100-400 8 100 220 550 6/9/12/15
SHA7-5D 3.2 M4 2/1 8/2 4.5/1.1 20/5 0.37/0.1 ×2 110-180 110-460 11 125 220 750 9/12/18/24
6.3 M4 4/1 4/1 4.5/1.1 20/5 0.37/0.1 ×2 110-180 110-460 11 125 220 650 2006/9/12
SHA7-6D 5 M4 2/1 8/2 7.5/2 20/5 0.37/0.1 ×2 120-180 120-460 13 150 270 950 12/18/24/30
10 M4 4/1 4/1 7.5/2 20/5 0.75/0.18 ×2 120-180 120-460 13 150 270 850 6/9/12/30
Note: The lifting and running motors can be equipped with frequency conversion motors.
