SHA8 Winch

Electric Wire Rope Hoist

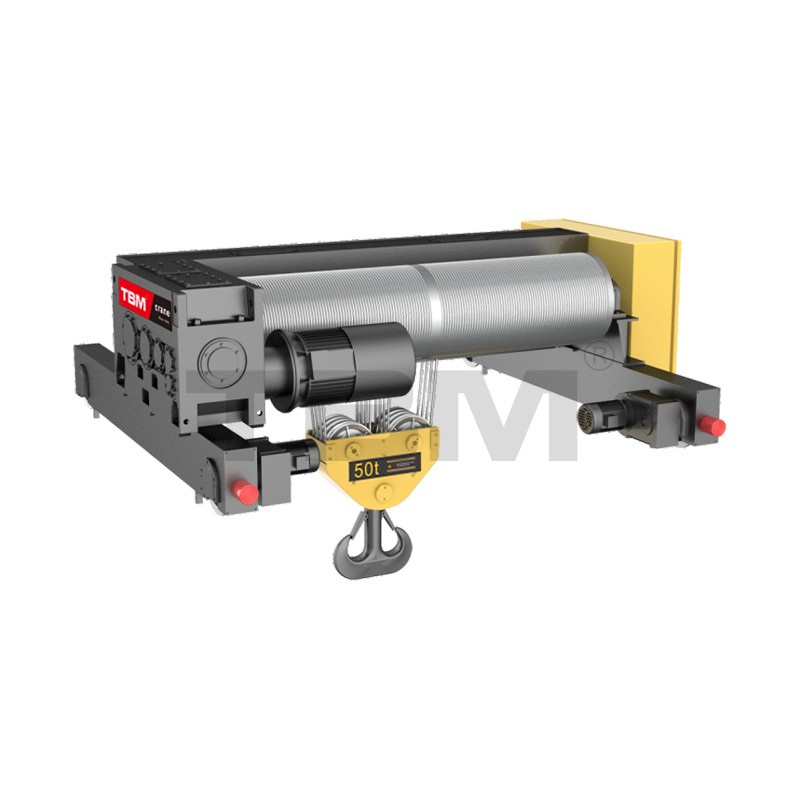

SHA8 Winch is a device that is driven by an electric motor and uses drums, ropes and related accessories to achieve functions such as lifting, lowering and traction. Its main structure includes motors, reducers, drums, ropes, braking systems, control systems, etc. The Winch drives the reducer to rotate through the motor, and then drives the drum to rotate through the output shaft of the reducer, and finally achieves the lifting or traction of objects through the winding or loosening of the rope. The SHA8 Winch uses a high-efficiency motor with high working efficiency and low energy consumption. The protection level of the motor is IP55, which can effectively prevent the intrusion of dust and moisture and ensure its stable operation in harsh environments. The SHA8 Winch is equipped with an advanced braking system, including mechanical braking and electric braking. The mechanical braking is achieved through components such as brakes and brake discs, and has a strong braking effect, ensuring that the equipment can be quickly shut down in an emergency. The control system of the SHA8 Winch adopts PLC control technology, which can realize the full monitoring and adjustment of the Winch. Through the control panel, the operator can view the working status of the equipment in real time and adjust the working speed, working direction, etc. according to needs.

PREV：No previous articleNEXT：SHA8 Double Girder Electric Wire Rope Hoist(Single Reel)-BS Type
  • Specification
  • About TBM
  • Contact Us

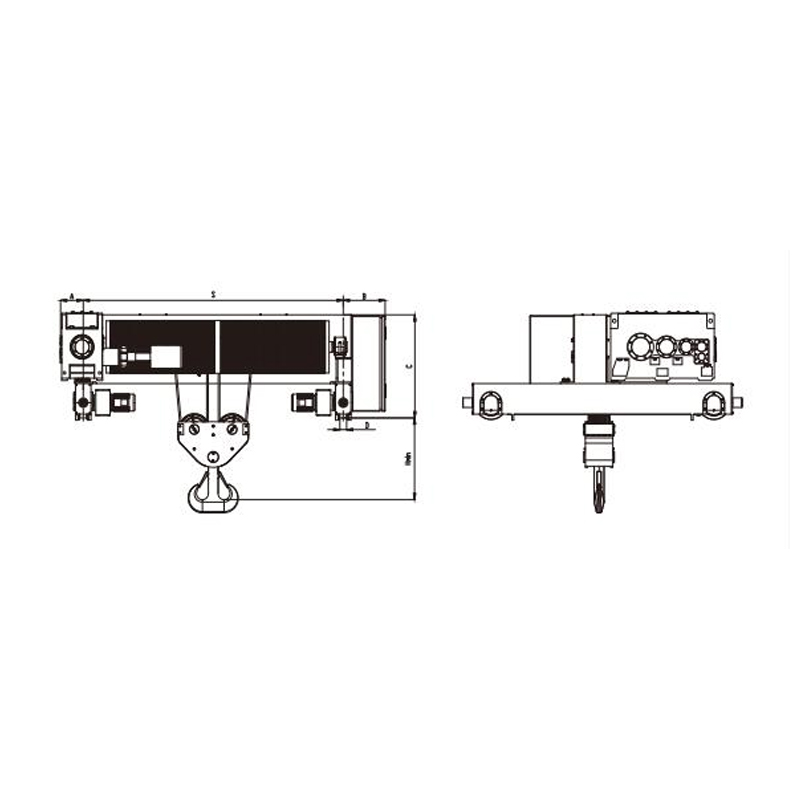

Technical Parameters
Model Capacity (t) Duty Rope Reaving Lifting Speed (m/min) Lifting Motor (kW) Travelling Speed (m/min) Travelling Motor (kW)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

 Hmin (mm) Wire Rope Diameter (mm) Rad Gauge (S) Size
9m 12m 18m 24m 30m
SHA-W1 20 M5 4/2 0-4.4 18.5 0-20 2x1.1 280 500 1100 75 800 15 / / 1800 2000 2500 S
32 M5 8/2 0-2.7 18.5 0-20 2x1.5 280 500 1100 75 900 15 1500 1800 2200 2700 3200 S
40 M5 8/2 0-2.2 18.5 0-20 2x2.2 280 530 1100 85 1000 15 1800 2000 2500 3000 3600 S
50 M5 12/2 0-3 18.5 0-20 2x2.2 280 530 1100 85 1000 15 1800 2000 2500 3000 3600 S
SHA-W2 32 M5 4/2 0-6 22 0-20 2x1.5 400 530 1400 75 800 18 / / 1500 1800 2000 S
63 M5 8/2 0-3 22 0-20 2x3 400 530 1400 85 1000 18 1500 1800 2200 2500 3000 S
80 M5 12/2 0-2 38 0-20 2x4 400 600 1400 95 1050 18 1800 2200 2800 3500 4200 S
100 M5 16/2 0-1.5 38 0-20 2x4 400 600 1400 95 1100 18 2200 2500 3500 4300 / S
