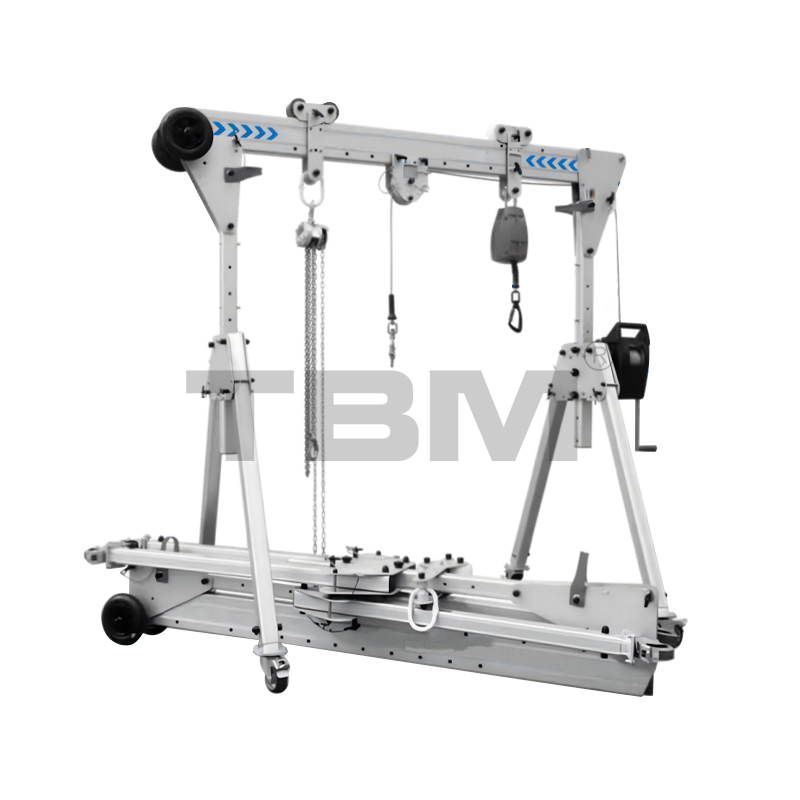

Crane Mobile Gantry

Light Crane System

The advantages of mobile gantries are their omnidirectional mobility, quick disassembly and installation, and minimal footprint, allowing them to be moved to another location using a minivan. Their adjustable width and height, along with their well-designed steel frame, can withstand loads ranging from 100 to 5,000 kg. They are particularly suitable for the installation, handling, and commissioning of workshop equipment, loading and unloading cargo from vehicles, and lifting large engine components in auto repair shops.

There are two main types of small lifting gantries: one is a fully mobile gantry with braked load-bearing wheels, suitable for ground-level lifting. The other is a fixed gantry mounted on rails on a floor or beam, utilizing an electric or manual hoist for mechanized lifting. This reduces manpower, lowers production and operating costs, and improves work efficiency. Our company can customize products based on customer site requirements. Mobile gantry hoists can be equipped with either a hand chain hoist or an electric chain hoist, offering high practicality and proven technology, making them highly popular with manufacturers.

PREV：No previous articleNEXT：No next article
  • Specification
  • About TBM
  • Contact Us

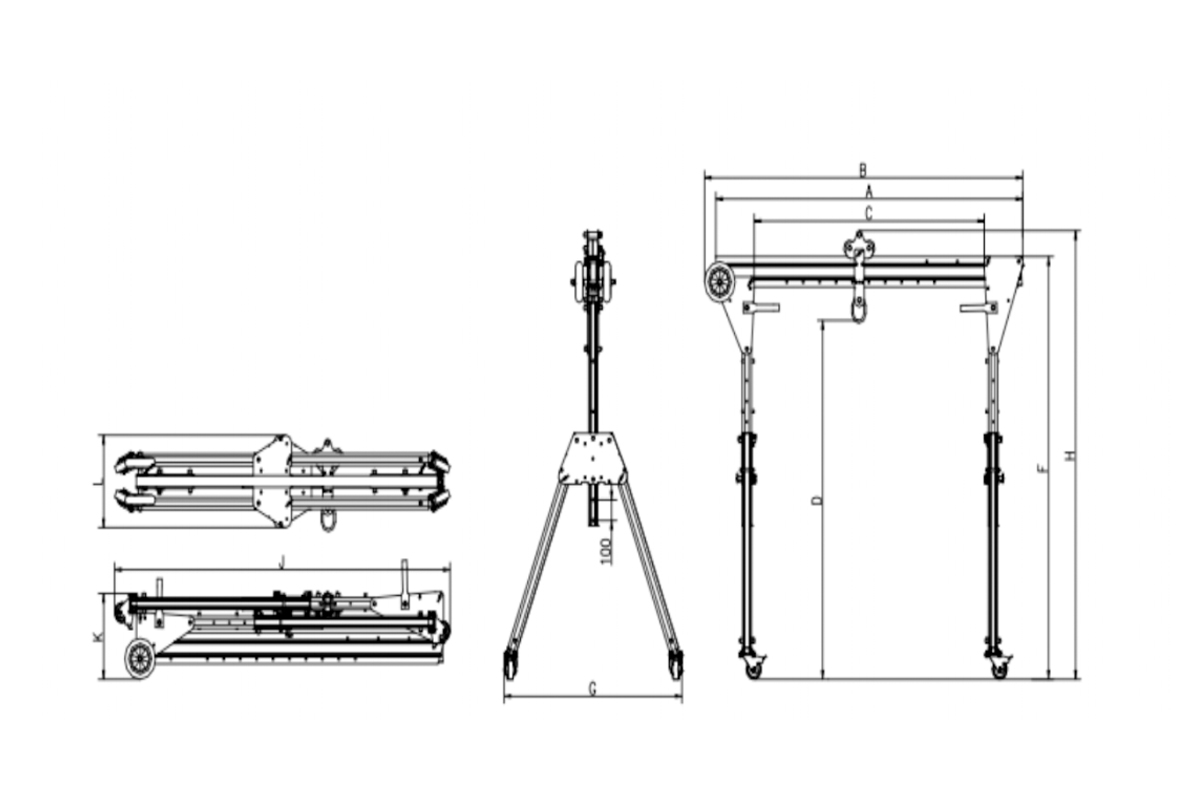

Model Lifting weight Dimensions (mm) Deadweight
kG A B C D F G H J K L (kG)
SRGS20 500  2000  2080  1100-1500 1544-2044 1876-2376 1158  2001-2501 2080  420  440  39
SRGS23 400  2300  2380  1200-1800 2380  40
SRGS40 250  4000  4080  2700-3500 4080  46
SRGM20 400  2000  2080  1100-1500 1548-2148 1880-2480 1215  2005-2605 2080  40
SRGM23 400  2300  2380  1200-1800 2380  41
SRGM40 250  4000  4080  2700-3500 4080  47
SRGT20 250  2000  2080  1100-1500 2022-2922 2354-3254 1586  2479-3379 2645  44
SRGT23 250  2300  2380  1200-1800 2380  45
SRGT40 250  4000  4080  2700-3500 4080  50
SRG1S20 1000  2000  2080  1102-1502 1490-1990 1822-2322 1242  1904-2404 2077  464  536  61
SRG1S30 1000  3000  3080  1902-2502 3077  67
SRG1S40 500  4000  4080  1902-3502 4077  73
SRG1M20 1000  2000  2080  1102-1502 1728-2428 2061-2761 1440  2143-2843 2200  65
SRG1M30 1000  3000  3080  1902-2502 3077  71
SRG1M40 500  4000  4080  1902-3502 4077  77
SRG1T20 1000  2000  2080  1102-1502 1969-2869 2301-3201 1639  2383-3283 2830  70
SRG1T30 1000  3000  3080  1902-2502 3077  76
SRG1T40 500  4000  4080  1902-3502 4077

82

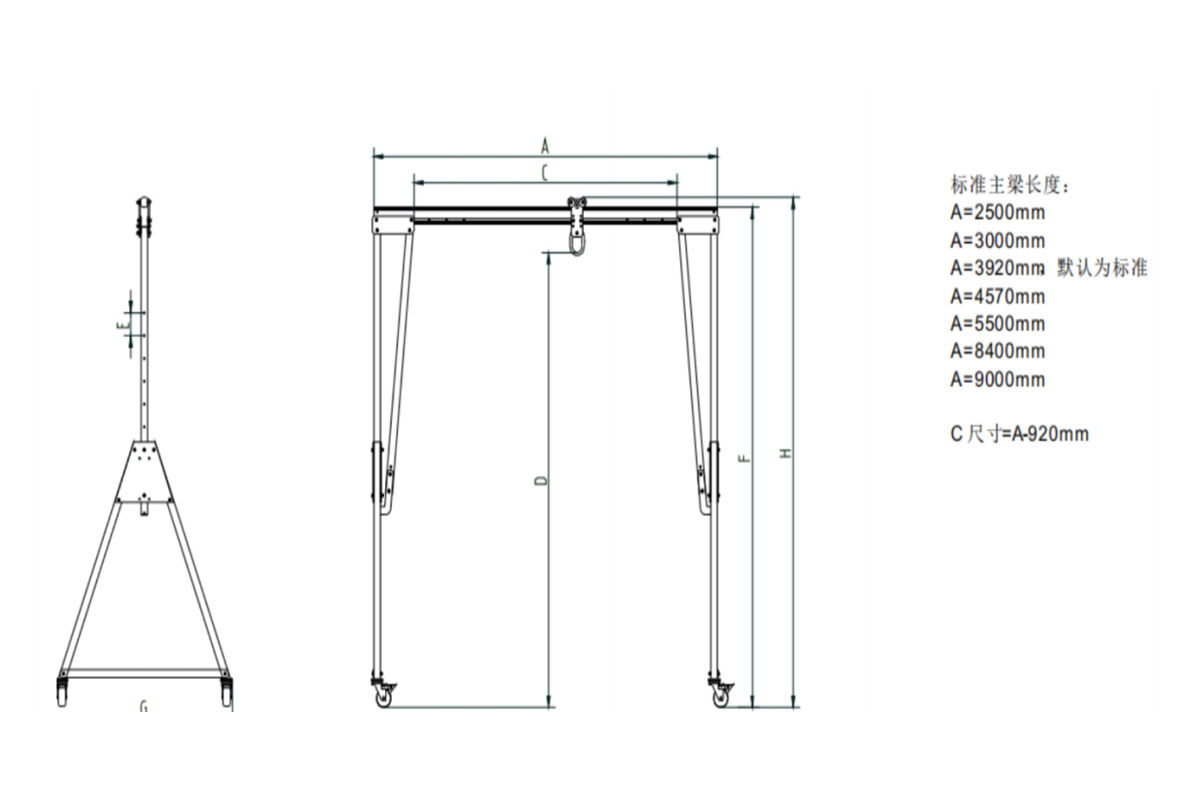

Lifting capacity Model Dimensions (mm) Weight (kg)
Outriggers*2+Main beam*A		 Caster specifications
Hook height D Height increment E Maximum height of beam top F Overall height H Width G
  2000
(A=3920)		 S 1495-2245 5x150 2600  1931-2681 1212  68*2+9.2*A 6 inches
M 2117-2867 5x150 3222  2553-3303 1429  75*2+9.2*A 6 inches
I 2232-3232 5x200 3587  2668-3668 1726  84*2+9.2*A 6 inches
T 2747-3947 6x200 4301  3183-4383 1993  93*2+9.2*A 6 inches
H 3195-4395 6x200 4847  3730-4930 2234  98*2+9.2*A 6 inches
L 3585-4785 6x200 5347  4230-5430 2557  105*2+9.2*A 6 inches
K 3686-5286 8x200 5848  4330-5930 2733  111*2+9.2*A 6 inches
B 3869-5669 9x200 6149  4431-6231 2733  115*2+9.2*A 6 inches
  3000
(A=3920)		 5  1545-2295 5x150 2698  2029-2779 1212  71*2+11*A 8 inches
M 2167-2917 5x150 3320  2651-3401 1429  78*2+11*A 8 inches
I 2282-3282 5x200 3685  2766-3766 1726  87*2+11*A 8 inches
T 2797-3997 6x200 4399  3281-4481 1993  95*2+11*A 8 inches
H 3245-4445 6x200 4847  3730-4930 2234  101*2+11*A 8 inches
L 3745-4945 6x200 5347  4230-5430 2557  107*2+11*A 8 inches
K 3846-5446 8x200 5848  4330-5930 2733  113*2+11*A 8 inches
B 4029-5829 9x200 6231  4513-6313 2733  119*2+11*A 8 inches
  5000
(A=3920)		 I 2143-3143 5x200 3592  2717-3717 1736  108*2+15*A 8 inches
T 2838-4038 6x200 4487  3412-4612 2059  120*2+15*A 12 inches
H 3289-4489 6x200 4938  3862-5060 2234  125*2+15*A 12 inches
L 3789-4989 6x200 5438  4362-5562 2557  131*2+15*A 12 inches

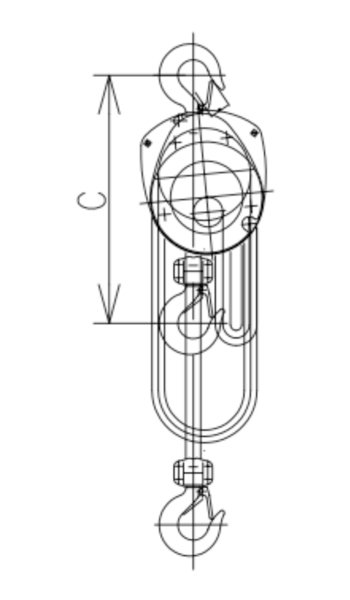

Hand chain hoist (reference)
Load (kg) C(mm) Weight (kg)
250  290  4
500  350  9
1000  380  12
2000  460  19
3000  570  27
5000  700  43

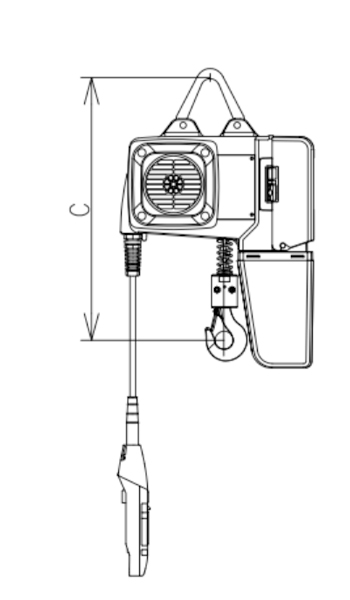

Electric hoist (reference)
Load (kg) C(mm) Lifting speed (m/min) Weight (kg)
250  410  8/2 24
500  490  8/2 31
1000  430  4/1 35
2000  615  4/1 65
3000  730  4/1 140
5000  760  4/1 150

Optional accessories

For SRG type
Serial number Name Picture

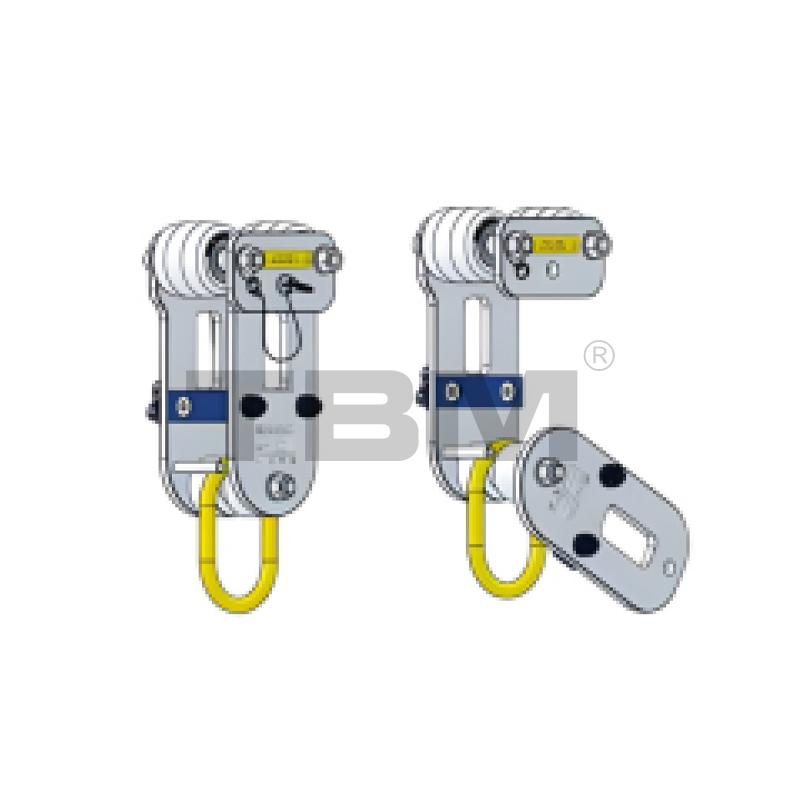

SRG0006 0.5t winch
SRG1006 1t winch
SRG0007

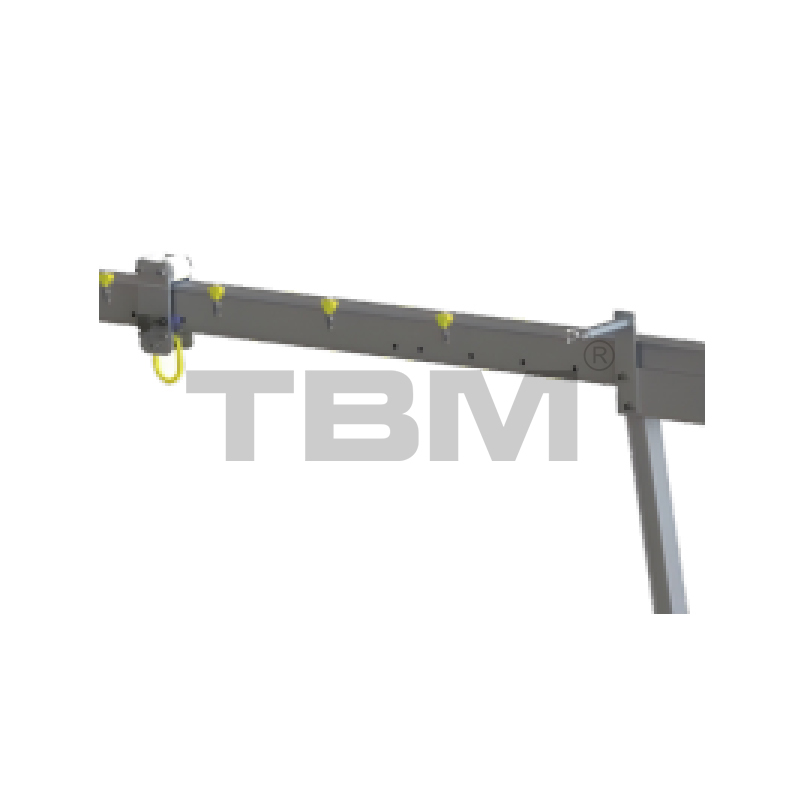

SRG1007		 Rigid support
SRG0008
SRG1008		 Flexible support
SRG1010 PRG1 type
SRG0016

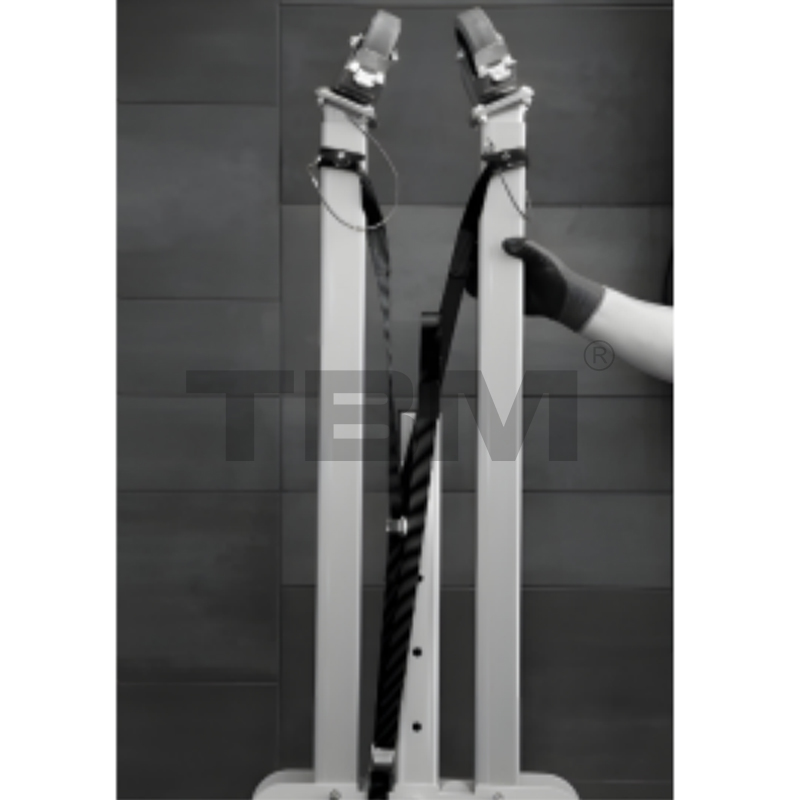

SRG1016		 Tie-down strap

For SG type
Serial number Name Picture
  SG 2006
  SG 3006
  SG 5006		 Detachable trolley
  SG 2008
  SG 3008

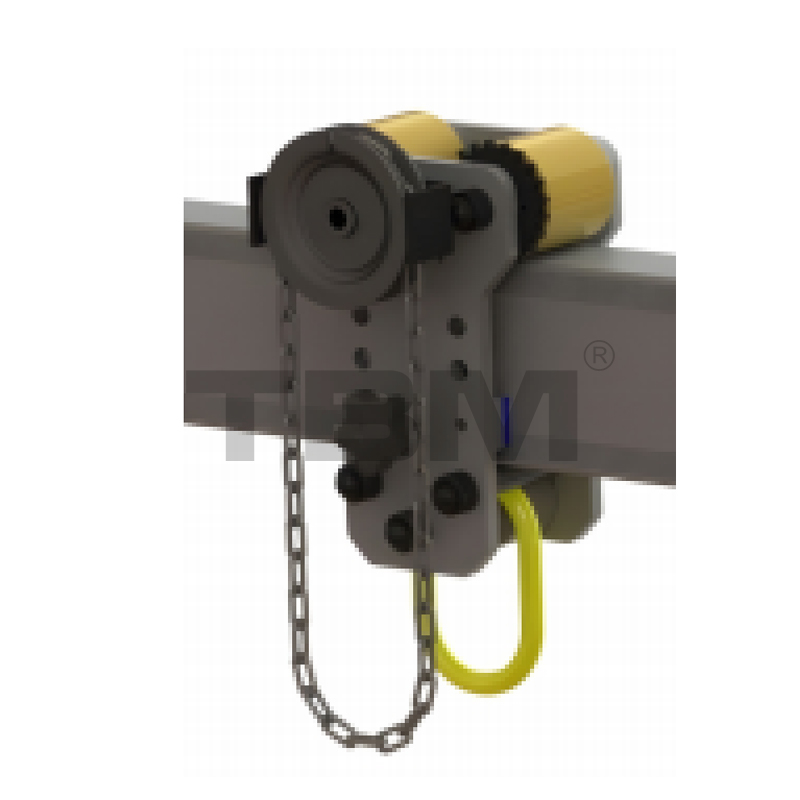

  SG 5008		 Hand-zip trolley
  SG 0002  Trolley power distribution
  SG 2010
  SG 3010

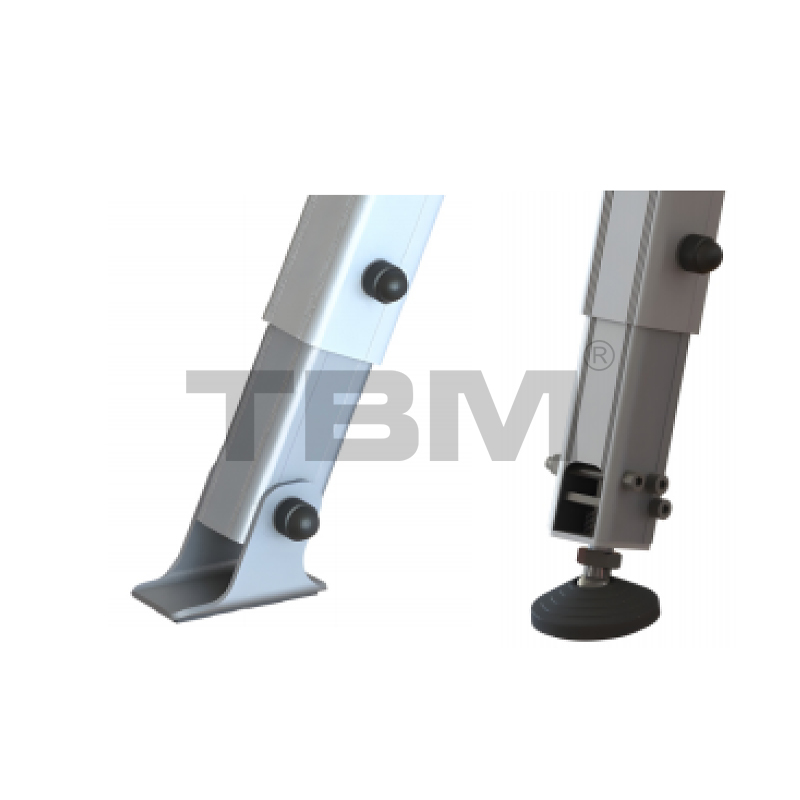

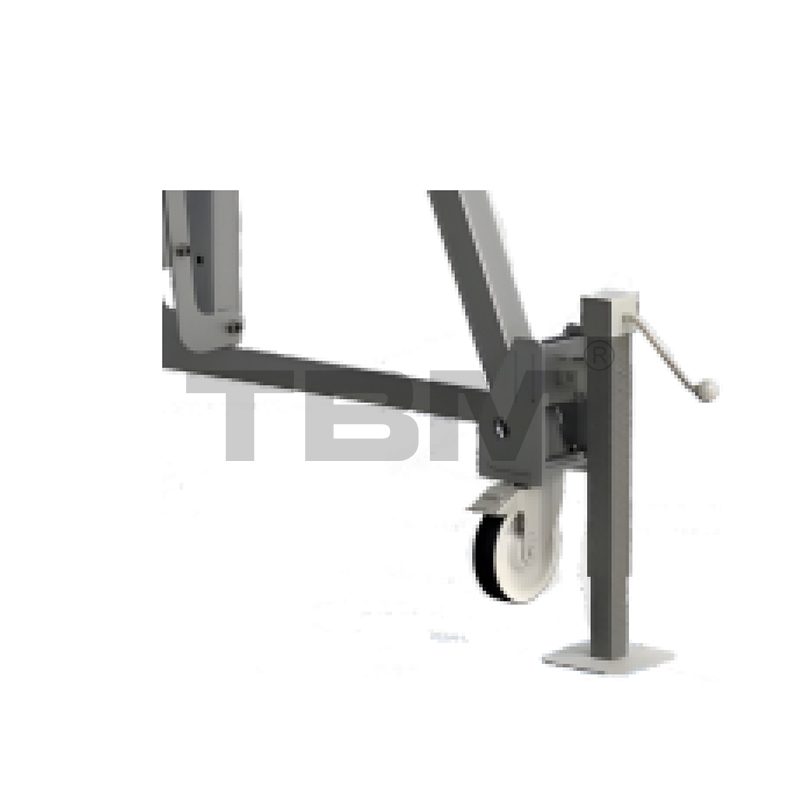

  SG 5010		 Support legs
  SG 2012
  SG 3012
  SG 5012		 Auxiliary casters
SG 2016
SG 3016
SG 5016		 Unicycle type
